RC-03 Linear displacement sensor

Short Description:

The sensor performs absolute position measurement on displacement and length. All of them adopt high sealing protection level. High-grade conductive materials to ensure the high wear resistance and stability of the sensor. The buffer universal joint at the front of the sensor can overcome some misaligned tilt and vibration of the transmission rod. This product is mainly used in automation control fields such as injection molding machines, die-casting machines, bottle blowing machines, shoemaking machines, woodworking machinery, printing machinery, packaging machinery, and IT equipment.

Product Detail

Product Tags


Technical Parameter

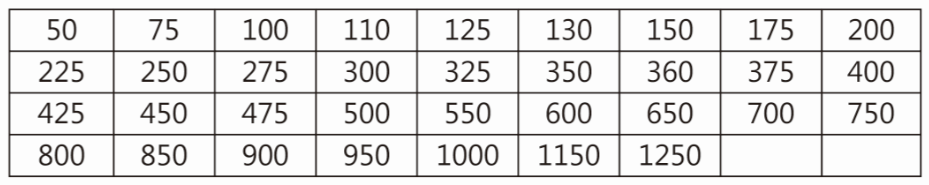

Measuring range 5~110mm 125 ~ 175mm 220 ~ 500mm
Precision +0.1% +0.1% +0.05%
The resistance tolerance ±10% 5.0k
Mechanical travel Travel +7mm
Resolution Infinite Continuous analysis
Maximum operating speed 10m/s
Maximum Temperature range -60℃~ +150℃
Repeatability 0.01mm
The output type 0 ~ 100%  Input working voltage (with displacement)
Sensitivity 1
Ask drift Infinitely small
